Oxygen Concentrator Systems (PSA) 415V 50Hz - 4 Bar Outlet

Compact Oxygen generators are a modular system designed according to ISO 9001/13485 which provide medical quality oxygen as per European Pharmacopoeia monograph, O2 is delivered at a pressure of 400 kPa (4 bar) gauge for supply of the hospital oxygen systems.

The system usesoilbased rotary screw compressor, external refrigerant dryer, filters, Carbon Steel or galvanized steel air receiver vessel or , PSA oxygen generator and steel oxygen receiver vessel(s). Supplied complete with graphic LCD controller and standard installed oxygen sensor/analyzer.

Oxygen Generator Modules

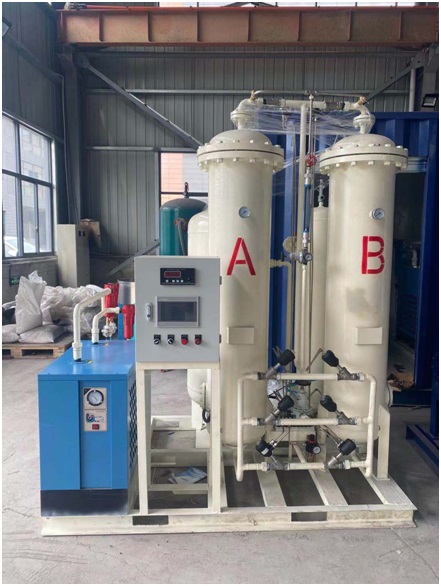

Capacity 10Nm3/h Oxygen generator - Can fill 20 Cylinders of 6m3 in 12 hours.

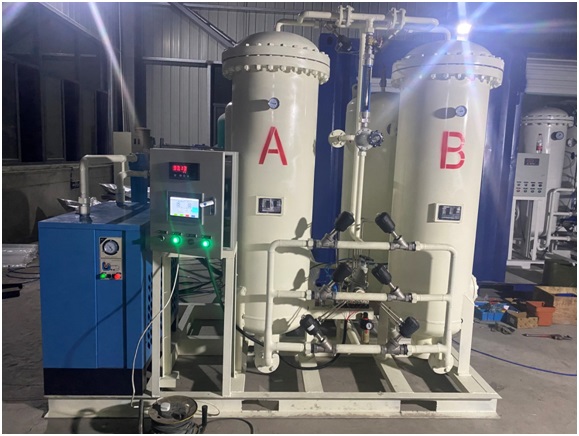

Capacity 20Nm3/h Oxygen generator - Can fill 40 Cylinders of 6m3 in 12 hours.

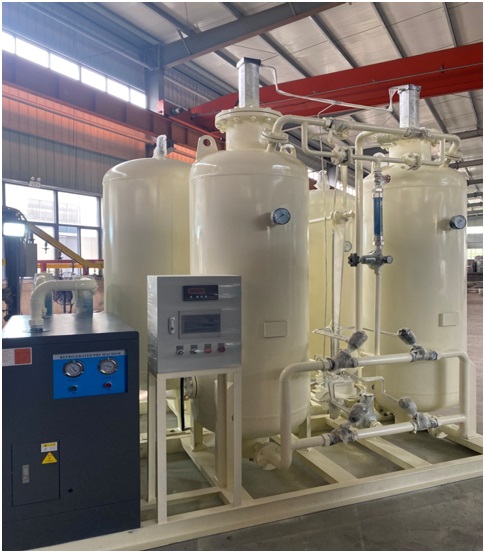

Capacity 30Nm3/h Oxygen generator - Can fill 60 Cylinders of 6m3 in 12 hours

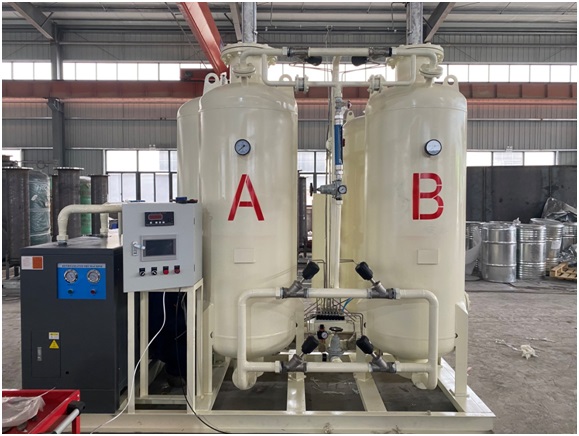

Capacity :40Nm3/h Oxygen Generator - Can fill 80 Cylinders of 6m3 in 12 hours.

Capacity 50Nm3/h Oxygen generator - Can fill 100 Cylinders of 6m3 in 12 hours.
